DEll PowerEdge R760XD2 2U Computer Server Intel Xeon 6426Y 32GB 1400W PSU DDR5 2U 2-socket R760XD2 Network Rack Server

Product Description

Product Parameters
Server Model Dell EMC PowerEdge R760XD2
Features Technical Specifications
Processor Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and with optional Intel QuickAssist Technology
RAM Up to 16 DDR5 RDIMMs (up to 1TB supported) NVDIMM No DIMM Speed: up to 4800 MT/S
Storage controllers
  • Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
  • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMeSSDs or USB
  • External HBA (non-RAID): HBA355e
  • Software RAID: S160
Drive Bays Front bays:
  • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
  • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
  • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
  • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB
Rear bays:
  • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
  • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Power supplies
  • 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
  • 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
  • 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
  • 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
  • 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
  • 1100 W LVDC -48 — -60 VDC, hot swap redundant
  • 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
  • 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
Size
  • Height – 86.8 mm (3.41 inches)
  • Width – 482 mm (18.97 inches)
  • Depth – 772.13 mm (30.39 inches) with bezel, 758.29 mm (29.85 inches) without bezel
Fans
  • Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans
  • Up to 6 hot plug fans
Outline specification 2U rack server
Embedded management iDRAC9
  • iDRAC Direct
  • iDRAC RESTful API with Redfish
  • iDRAC Service Module
  • Quick Sync 2 wireless module
Embedded NIC 2 x 1 GbE LOM
GPU options Up to 2 x 350 W DW and 6 x 75 W SW
Port Front Ports:
  • 1 x iDRAC Direct (Micro-AB USB) port
  • 1 x USB 2.0
  • 1 x VGA
Rear Ports:
  • 1 x Dedicated iDRAC Ethernet port
  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x VGA
  • 1 x Serial (optional)
  • 1 x VGA (optional for Direct Liquid Cooling configuration)
PCIe Up to eight PCIe slots:
  • Slot 1: 1 x8 Gen5 or 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length
  • Slot 2: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length
  • Slot 3: 1 x16 Gen4 Low profile, Half length
  • Slot 4: 1 x8 Gen4 Full height, Half length
  • Slot 5: 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length
  • Slot 6: 1 x16 Gen4 Low profile, Half length
  • Slot 7: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
  • Slot 7 SNAPI: 1 x16 Gen5 Full height, Half length
  • Slot 8: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length
Operating system and hypervisor Canonical Ubuntu Server LTS
  • Microsoft Windows Server with Hyper-V
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware ESXi
For specifications and interoperability details, see Dell.com/OSsupport.
Warranty 3 years
Products Description

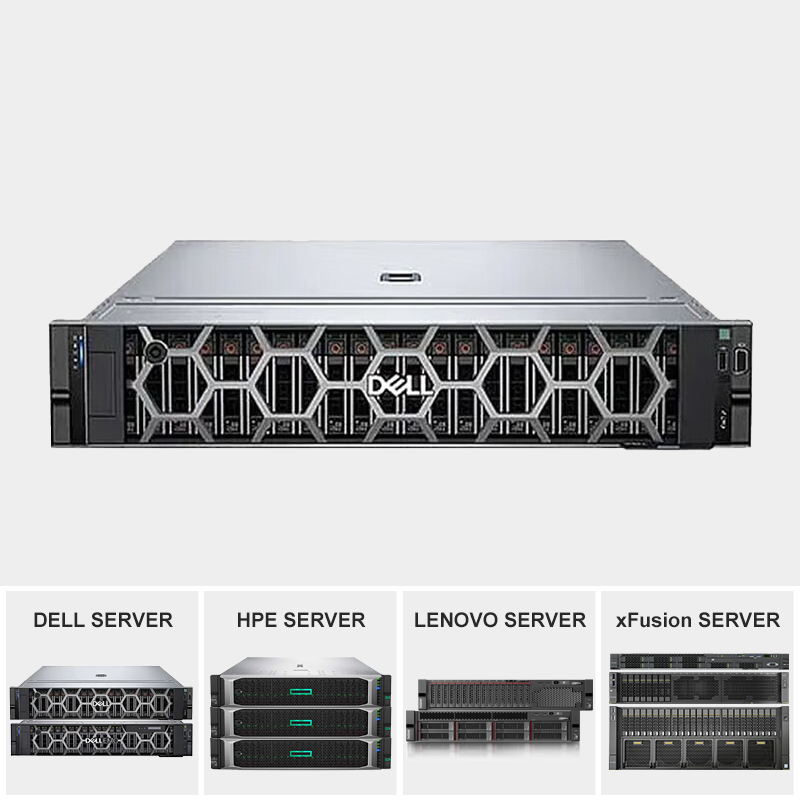

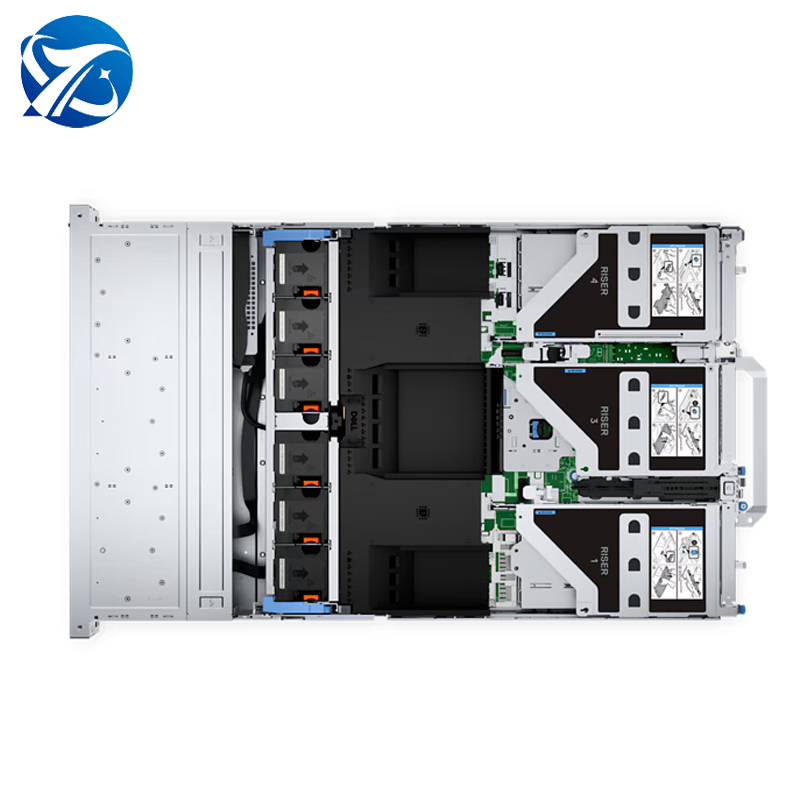

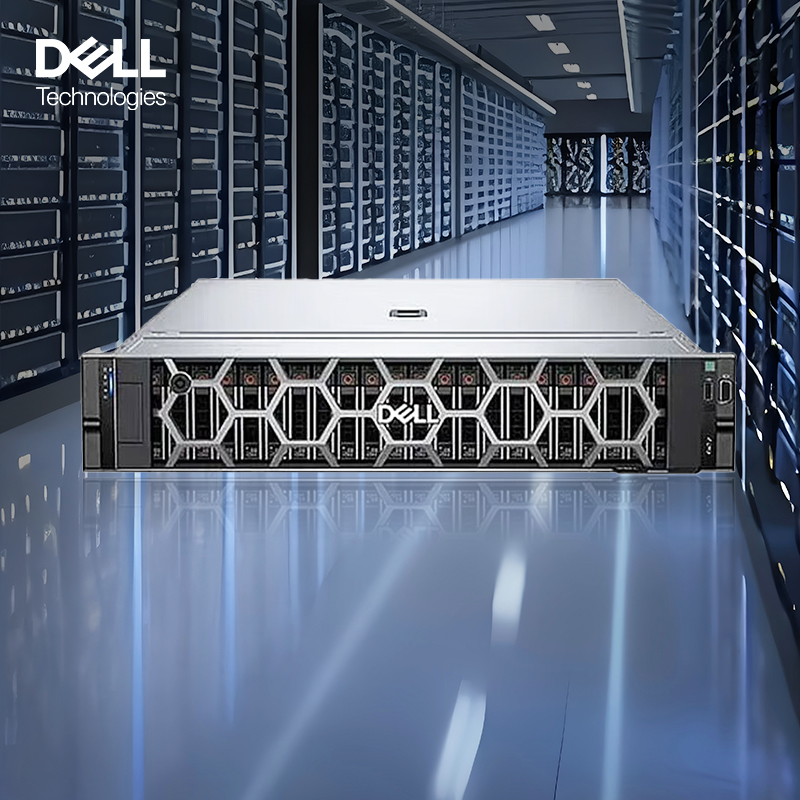

Dell PowerEdge R760xd2

Dell PowerEdge R760xd2

Meet Your Growing Unstructured Data Needs With Object Storage Technology Designed to Be Easily Configurable, Serviceable, and Scalable. This 2U, 2 socket Server is Ideal for File and Object Storage, Video Capture/Retrieval, and Content Delivery Networks.

Product Display
Product Display 1
Product Display 2
Product Display 3
Product Display 4
Product Display 5
Product Display 6
Product Display 7
Application Scenario
Application Scenario
Exhibition
Exhibition
Packing & Delivery
Packing 1
Packing 2

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Frequently Asked Questions
Q
When can I get the quotation?

We usually quote within 24 hours after receiving your inquiry. If you are in a hurry, please inform us by email or telephone so we can give priority to your inquiry.

Q
What kind of warranty do you offer on your products?

Our whole machine products come with a comprehensive 3-year replacement warranty, supported by a complete supply chain to resolve any after-sales issues quickly.

Q
How is the quality of memory and components guaranteed?

All memory modules are original brand chips, and we strictly test all components and hardware configurations prior to every delivery.

Q
What payment methods do you accept?

We accept Alipay, credit card transactions, bank card transfers, T/T payments, and other secure payment methods to eliminate security concerns.

Q
What is the minimum order quantity (MOQ) for custom OEM orders?

Different products have different MOQs. Please share your detailed requirements with us and we will try our best to accommodate your needs. Small test orders are also popular.

Q
Why is your price competitive compared to the local market rates?

Having specialized in this industry for many years, we know quality is the foundation of long-term business. While products may look identical externally, internal components and structural configurations vary, resulting in different performance standards at various price points.
